DESCRIPTION

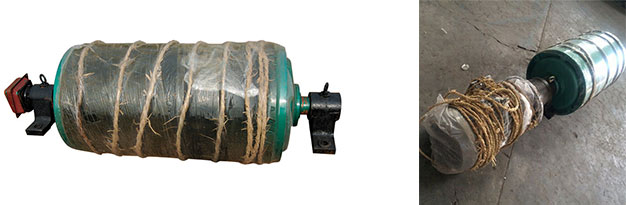

Motorized pulley includes pulley shell, bracket and gear reducer. Driver includes electric motor, coupler, hydraulic coupler, stop-reverse unit and brakes, etc. Bracket is welded by steel sheet and used for erecting electric motor and its cover, and also designed and made by customer.
|
Description |
outside drum motor belt conveyor motorized pulley |
|
Type |
motorized with motor |
|
Power |
1.5 2.2 3.0 4.5 5.5 7.5 11 15 18.5 22 30 37 KW |
|
Velocity of pulley surface |
0.63 0.8 1.0 1.25 1.6 2.0 2.5 3.15 Vm/s |
|
Pipe / tube/shell |
1) Material : Q235 carbon steel |
|
Type conveyor |
DTII DTII(A) TD75 |
|
Shaft / axis |
1) Material: Cold drawn steel C45(DIN) |
|
Bearing |
big roving crack, deep groove ball with double sealing |
|
Welding |
pipe and bearing housing with automatic welding |
|
Surface |
smooth steel surface, rubber face |
|
Color |
Red, yellow, blue or as require |
|
Standard |
ISO9001:2008 CEMA DIN TUV |
|
Application |
Used in coal mine, steel industry, cement industry and so on |
|
Service life |
More than 30,000 hours |
